Ecodevices RT2
Consumption monitoring Energy manager Compatible with Linky meters
21 Items In stock
Présentation
FeaturesMonitor, control, manage, and automate your devices from anywhere on the internet, via your computer, tablet, or smartphone. The Eco Devices RT2, a standalone Ethernet server made in France, offers monitoring of your electrical installation.
Your 100% Autonomous Energy Manager
No need for a remote server or subscription!
Consumption
Monitor your electricity consumption, the production from your photovoltaic panels, water, gas, oil—all with a single device. Control your heating, optimize hot water production, reduce energy-intensive components, and save!

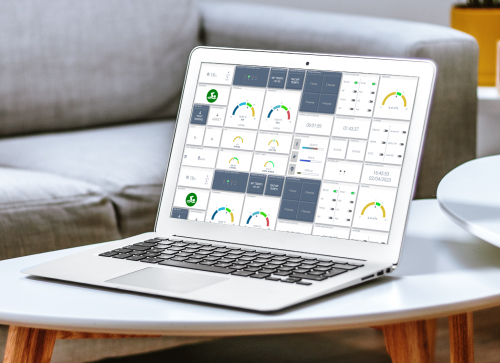

Statistics
Find all your consumption history. The Eco Devices RT2 records consumption indexes for 4 years. A graphical engine allows you to view different consumption curves.
Interface
Simply connect to the Eco Devices RT2 using your smartphone, PC, or tablet browser. Its 100% responsive graphical interface adapts to all screens. Easy to use, it allows you to turn systems on and off without reducing your energy consumption.
Scenarios
The Eco Devices RT2 offers a powerful scenario engine, managing up to 64 consumption points. It intelligently adjusts to events such as tariff changes, temperature variations, or power exceedances. Ideal for precise zone-based heating control.
The ultra-performance module for energy savings
Wired
A wired home automation solution, guaranteeing reliability and responsiveness in interactions with your installation.
Ecological
Regular and free updates bring new features to increase the power of the IPX800 V5.
Economical
Save energy on a daily basis.
Communicating
The Eco Devices features a powerful API allowing it to communicate and interact with other connected systems.

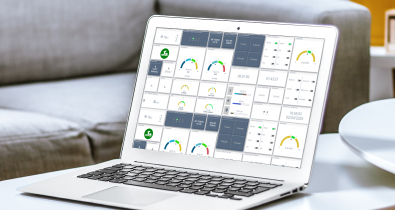

Customizable
A fully configurable interface; place and move your modules as you wish and according to your needs.
Compatible with Linky
Once connected to your Linky meter, the Eco Devices RT2 allows you to monitor your energy consumption in real-time.
Features
Like all our products, the Eco Devices RT2 is continuously evolving. Thanks to the active participation of our user community, we regularly add new features and make updates to improve the product based on user feedback. See the forum.
Technology
Equipped with Enocean technology, it can easily communicate via the internet with remote servers, home automation hubs, or any device equipped with Radio Enocean technology.
Enocean Transmitter EEP A5-12-00 EEP A5-12-10 16 Transmittable Channels Enocean Receiver (24 actuators and 24 analog sensors) Included
2 Current clamps includedEcodevices RT2
Automatic time setting, summer/winter time management. Internal clock.
-
4 digital inputs for dry contact or collective open contact
-
1 Fieldbus (extensions X-4FP, X-8R, X-8D)
-
Network: 10/100 Mbps
-
1 teleinformation input compatible with standard or Linky meters
-
4 inputs for current clamps (expandable to 16)
-
2 relay outputs 250V/10A (resistive and expandable to 10)
-
CE
-
256 programmable clocks
-
256 customizable scenarios
-
GX® scenario engine
-
128 tcp/ip notifications
-
Power consumption: 3.5 Watts
-
128 secure and customizable email alerts to 4 recipients
-
Power supply: 90-265 Vac, 47-63 Hz
-
HP Auto-MDIX
-
Diagnostic cable
-
IEEE 802.3az
-
DynDNS support
Documents and Links
Mode d'emploi EcoDevice RT2
Mode d'emploi EcoDevice RT2
DownloadYou might also like

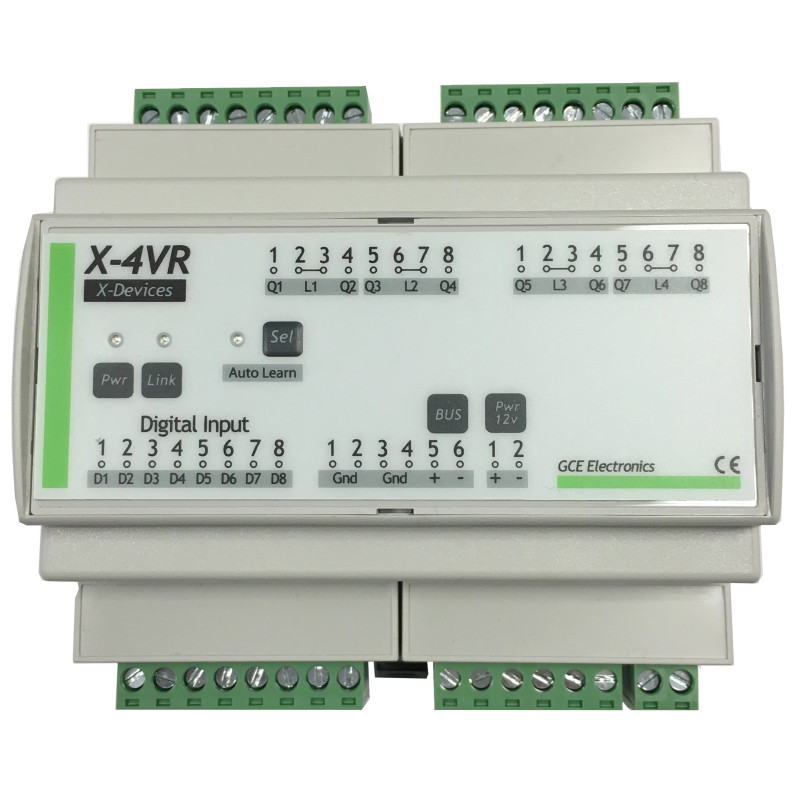

IPX800 V4 - Roller shutter controller- X-4VR
